6 Port Gigabit Industrial PoE Switch With Bypass Function L2+ Network Management

The ONV-IPS33006PFM-BY is a Gigabit managed industrial PoE switch independently developed by ONV. It features 4×10/100/1000M adaptive RJ45 ports and 2×100/1000M uplink SFP fiber ports. Ports 1-4 support IEEE 802.3 af/at PoE standard with single-port PoE power up to 30W. As a PoE power supply device, it automatically detects and identifies compliant electrical equipment and supplies power through the cable to PoE terminal equipment such as wireless APs, IP cameras, network telephones, and industrial sensors.

The switch integrates a Bypass optical switching module. When power is interrupted, the fiber automatically switches to bypass-through state to prevent communication interruption due to switch failure, ensuring network transmission reliability. Ideal for intelligent transportation, rail transit, electric power, mining, metallurgy, green energy, and industrial applications requiring cost-effective, stable communication networks.

The ONV-IPS33006PFM-BY offers L2+ network management functions, supports IPv4 static routing forwarding, and includes comprehensive security protection mechanisms, ACL/QoS strategies, and VLAN functions. It supports multiple network redundancy protocols STP/RSTP/MSTP (<50ms) for improved link backup and network reliability.

Product Image

• Support for non-blocking wire-speed forwarding
• Full-duplex based on IEEE802.3x and half-duplex based on Backpressure
• Gigabit RJ45 port and SFP port combination for flexible networking

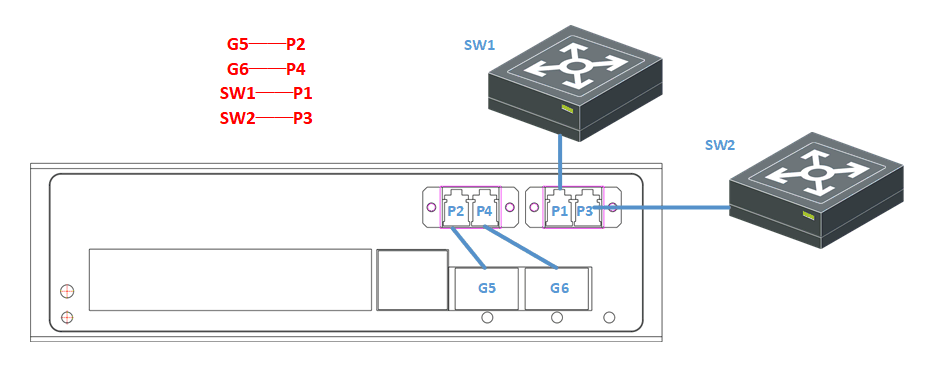

• Physical single-mode single fiber optical path (Bypass) function with pure hardware switching

• PoE network management for port power allocation, priority setting, and status viewing
• Compliance with IEEE 802.3 af/at PoE standards
• Priority system for PoE ports to manage power budget
• 4×10/100/1000Base-T RJ45 ports support PoE power

• Support for Access, Trunk, and Hybrid port configuration
• IEEE 802.1Q VLAN support
• STP/RSTP/MSTP spanning tree protocol support
• Static and dynamic aggregation for increased bandwidth
• IGMP Snooping V1/V2/V3 for multi-terminal video requirements
• QoS with multiple priority modes and queue scheduling algorithms
• ACL for flexible security access control policies

• Port isolation and broadcast storm suppression
• IP+MAC+port+VLAN quadruple binding function
• 802.1X authentication for LAN computers

• CE, FCC, RoHS certifications
• LED indicators for device status monitoring
• Low power consumption with aluminum alloy housing
• Excellent heat dissipation for stable operation

• CPU monitoring, memory monitoring, Ping detection
• HTTPS, SSHV1/V2 encryption methods
• RMON, system log, and port traffic statistics
• LLDP for link status monitoring
• Web network management, CLI, SNMP, Telnet support
