5 Port Gigabit Smart PoE Switch With Watchdog Function For Network Communication

Uplink Port : 1

MAC Address Table : 2K

Supply Ability : 500000 pcs/month

Total Power : 45W (100-160V), 65W (160-240V)

Payment Terms : T/T,Western Union

Place of Origin : China

Forwarding Rate : 7.44Mpps

Brand Name : ONV

PoE Ports : 4

Switching Capacity : 10Gbps

Packaging Details : Packaging dimensions: 166*120*39mm, weight: 0.48kg, Carton dimensions: 518*500*215mm, 60 pcs/carton, weight: 29kg

Dimensions : 148.4x64.8x35.7mm

MOQ : 1

Model Number : ONV-H3054PS

Certification : CE, FCC, RoHS

PoE Power : 30W per port

Jumbo Frame : 16K

Delivery Time : 2-8 work days

Port Count : 5

Contact Now

5-port Gigabit Smart PoE Switch
Product Overview

The ONV-H3054PS is a smart PoE switch featuring 4×10/100/1000M RJ45 ports and 1×10/100/1000M uplink RJ45 port. Ports 1-4 support PoE+ standard with single-port PoE power up to 30W. The PoE ports include watchdog servo functionality that automatically restarts and restores network communication when port communication fails. PoE power supply features a delayed start function, turning on ports sequentially (within 2 seconds) to prevent excessive current during startup and avoid power overload protection.

As a PoE power supply device, it automatically detects and identifies standard power-receiving devices and powers them through network cables. It can power wireless APs, IP cameras, VoIP systems, video access control intercoms, and other PoE terminal devices, meeting network environments requiring high-density PoE power supply. Ideal for small and medium-sized enterprises, including hotels, campuses, parks, banks, hospitals, and factories, to build economical and efficient networks. Plug-and-play operation with no configuration required.

Technical Specifications
Model ONV-H3054PS
Interface Characteristics
Fixed Port 4×10/100/1000Base-T PoE ports (Data/Power)
1×10/100/1000Base-T uplink RJ45 port (Data)
Ethernet Port Port 1-5 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 10Gbps (non-blocking)
Forwarding Rate@64byte 7.44Mpps
MAC 2K
Buffer Memory 1M
Jumbo Frame 16K
LED Indicator Power: PWR (Green), Network: Link (Green)
PoE & Power Supply
PoE Port Port 1-4
Power Supply Pin 1/2(+) 3/6(-)
Max Power Per Port 30W, PoE+
Total PWR/ Input Voltage 45W/ (AC100-160V) | 65W/ (AC160-240V)
Power Consumption Standby<3W, full load<40W | Standby<3W, full load<60W
Power Supply Built-in power supply, AC100-160V 50-60Hz, 1.0A | Built-in power supply, AC160-240V 50-60Hz, 1.0A
Physical Parameter
Operation Temp/ Humidity -20~+50°C, 5%~90% RH non-condensing
Storage Temp/ Humidity -40~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H) 148.4×64.8×35.7mm
Net /Gross Weight 0.32kg/ 0.48kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
5 Port Gigabit Smart PoE Switch With Watchdog Function For Network Communication
Key Features
Gigabit Access
  • Support non-blocking wire-speed forwarding.
  • Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
  • Provide 5×10/100/1000Base-T RJ45 ports for flexible networking to meet various scenario requirements.
Smart PoE Power Supply
  • Comply with PoE+ standard, automatically identify PoE devices for power supply without damaging non-PoE devices.
  • 5×10/100/1000Base-T RJ45 ports support PoE power for various security field scenarios
  • PoE port supports watchdog function, automatically detecting data communication status in real time, and restarting the port PoE when the port load crashes to repair network communication.
  • The PoE port has a delayed startup function, with ports starting completely within 2 seconds from left to right, to prevent instantaneous overload and power overload protection.
Stable and Reliable
  • CE, FCC, RoHS certified
  • Plug-and-play operation with no configuration required.
  • User-friendly panel with LED indicators for PWR and Link status
  • Low power consumption with galvanized steel casing and ventilation holes for excellent heat dissipation and stable operation
Dimensions
5 Port Gigabit Smart PoE Switch With Watchdog Function For Network Communication

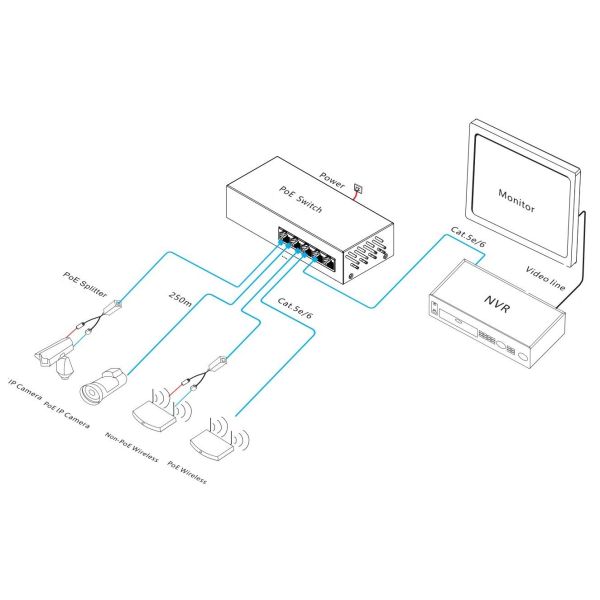

Applications
5 Port Gigabit Smart PoE Switch With Watchdog Function For Network Communication
Ordering Information
Model Description Built-in Power Supply
ONV-H3054PS Smart PoE switch with 5×10/100/1000M RJ45 ports. Port 1-4 support the PoE+ standard. Includes watchdog function and delayed start function. Built-in power supply. 65W
Packing List
Packing List Qty Unit
5-port Gigabit smart PoE switch 1 Set
AC Power Cable 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
