12 Port 2.5G Managed PoE Switch Shock Resistant With L3 Network Management

PoE standard : IEEE802.3af/at

Brand Name : ONV

Payment Terms : T/T,Western Union

SFP+ ports : 4

Transmission rate : 10/100/1000Mbps,10/100Mbps,10/100/1000M / 10G

Power consumption : Standby<13W, full load<130W/250W

Place of Origin : China

Forwarding rate : 89.28Mpps

Ports : 12

MAC entries : 32K

Model Number : ONV-POE57128PFM

Supply Ability : 300000 pcs/month

Max PoE power : 30W per port

Certification : CE, FCC, RoHS

Port count : 12

Delivery Time : 2-8 work days

MOQ : 1

Packaging Details : Packaging dimensions: 311*245*74mm, Gross weight: 2.1kg, Carton dimensions: 480*430*352mm, 10 pcs/carton, Carton weight: 22kg

Switching capacity : 96Gbps

Contact Now

Product Overview

The ONV-POE57128PFM is a 2.5G managed PoE fiber switch independently developed by ONV. It features 8*10/100/1000/2500Base-T adaptive RJ45 ports and 4*1/10G uplink SFP+ fiber ports. Ports 1-8 support IEEE802.3af/at PoE standard with a single-port maximum PoE power of 30W. As a PoE power supply device, it automatically detects and identifies compliant powered devices and powers them through network cables. This enables power delivery to PoE terminal equipment such as wireless APs, IP cameras, VoIP phones, video access control intercoms, and more, meeting network environments requiring high-density PoE power supply. Ideal for hotels, campuses, factories, parks, supermarkets, and small to medium-sized enterprises seeking cost-effective networking solutions.

The ONV-POE57128PFM offers L3 network management functions, supports IPv4/IPv6 management, dynamic routing and forwarding, comprehensive security protection mechanisms, complete ACL/QoS policies, and rich VLAN functionality for easy management and maintenance. Supports multiple network redundancy protocols, including STP/RSTP/MSTP (<50ms) and ERPS (<20ms), to enhance link backup and network reliability. When network failures occur, communication is quickly restored to ensure uninterrupted operation for critical applications. Configuration of PoE power supply management, port management, routing address management, port flow control, VLAN division, IGMP, security policies, and other application services can be performed through Web, CLI, SNMP, and Telnet management methods.

Technical Specifications

Specification	ONV-POE57128PFM	ONV-POE57128PFM-at
Interface Characteristics
Fixed Port	1Console RS232 port, 41/10G SFP+ fiber ports, 8*10/100/1000/2500Base-T PoE ports
Ethernet Port	Port 1-8 support 10/100/1000/2500Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaptation
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100m); 100BASE-TX: Cat5+ UTP (≤100m); 1000BASE-T: Cat5e+ UTP (≤100m); 2500BASE-T: Cat6a+ UTP (≤100m)
Optical Fiber Port	Optical module not included (optional single-mode/multi-mode, single fiber/dual fiber modules, LC interface)
Optical Cable/Distance	Multi-mode: 850nm/0-550m, 0-300m(10G); Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameters
Network Management Type	L3
Forwarding Mode	Store and forward (Full wire speed)
Switching Capacity	96Gbps (non-blocking)
Forwarding Rate@64byte	89.28Mpps
CPU	Dual Core 1G
DRAM	2G
FLASH	256M
MAC	32K
Buffer Memory	16M
Jumbo Frame	12K
PoE & Power Supply
PoE Port	Port 1-8
Max Power Per Port	30W, IEEE802.3 af/at
Total Power/Input Voltage	130W/(AC100-240V)	250W/(AC100-240V)
Power Consumption	Standby<13W, full load<130W	Standby<13W, full load<250W
Power Supply	Built-in, AC100-240V 50-60Hz, 2.3A	Built-in, AC100-240V 50-60Hz, 4.8A
Physical Parameters
Operation Temp/Humidity	-20~55°C, 5%~90% RH non-condensing
Dimension (LWH)	27018144.5mm
Net/Gross Weight	1.45kg/2.1kg	1.6kg/2.2kg
Installation	Desktop, 1U/19" cabinet
Certification & Warranty
Lightning Protection	IP30, 6KV 8/20us
Certification	CE, FCC, RoHS
Warranty	3 years, lifelong maintenance

Product Image

12 Port 2.5G Managed PoE Switch Shock Resistant With L3 Network Management

Key Features

2.5G Access with 1/10G SFP+ Uplink Fiber Ports

Non-blocking wire-speed forwarding capability
Full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
2.5G RJ45 port and 1/10G uplink SFP+ fiber port combination for flexible networking across various scenarios

Smart PoE Power Supply

Compliant with IEEE802.3af/at PoE standards, automatically identifies PoE devices for power supply without damaging non-PoE equipment.
8*10/100/1000/2500Base-T RJ45 ports support PoE power for security monitoring, conference systems, wireless coverage, and other applications
PoE port priority mechanism ensures high-priority ports receive power first when remaining power is insufficient.
Comprehensive PoE network management functions, including port on/off control, power status monitoring, and time scheduling

Advanced Business Processing Capability

ERPS ring network and STP/RSTP/MSTP support for eliminating layer 2 loops and enabling link backup
IEEE802.1Q VLAN with flexible VLAN division, Voice VLAN, and QinQ configuration
Static and dynamic aggregation for increased link bandwidth, load balancing, and improved link reliability
QoS with port-based, 802.1P-based, and DSCP-based priority modes and four queue scheduling algorithms
ACL for data packet filtering with configurable matching rules, processing operations, and time permissions
IGMP V1/V2/V3 multicast protocol and IGMP Snooping for multi-terminal HD video surveillance and video conferencing

Enhanced Security Features

Port isolation and port broadcast storm suppression
IP+MAC+port+VLAN quadruple flexible combination binding
802.1X authentication for LAN computers with controlled port authorization based on authentication results

Reliability and Durability

Certifications: CE, FCC, RoHS
User-friendly panel with LED indicators for PWR, SYS, Link, L/A, and PoE status
Low power consumption, galvanized steel housing, and optimized heat dissipation for stable operation

Easy Operation and Maintenance

CPU monitoring, memory monitoring, Ping detection, and cable length detection
Secure management with HTTPS, SSLV3, SSHV1/V2 encryption
System logging and port traffic statistics for network optimization
LLDP for network management system link status query and judgment
Multiple management methods: Web, CLI command line, SNMP, Telnet

Dimension Diagram

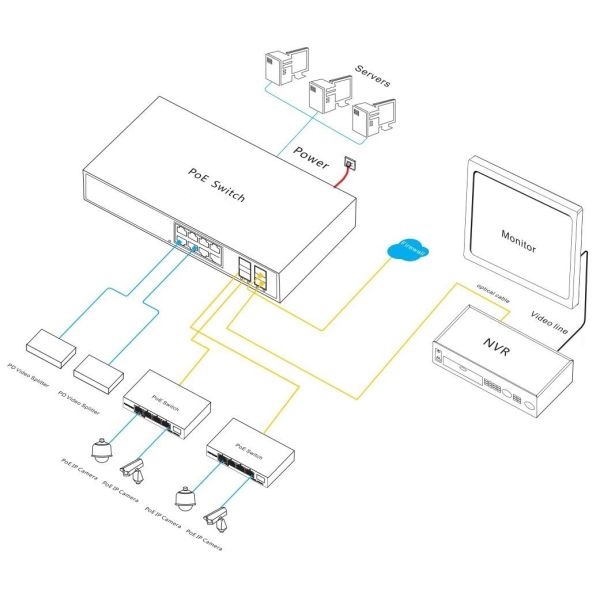

Application Diagram

Ordering Information

Model	Description	Built-in Power Supply
ONV-POE57128PFM	L3 managed PoE switch with 810/100/1000/2500M RJ45 ports and 41/10G uplink SFP+ fiber ports. Ports 1-8 support the IEEE 802.3af/at PoE standard. Built-in power supply and 1U/19" cabinet installation.	130W
ONV-POE57128PFM-at		250W

Note: Optical modules are not included and must be purchased separately.

Packing List

Item	Qty	Unit
12-port 2.5G managed PoE switch	1	Set
RJ45-DB9 Adapter Cable	1	PC
User Guide	1	PC
Warranty Card and Certificate of Conformity	1	PC

Optional Optical Modules

Product Type	Model	Description	Unit
1.25G Optical Module	2630	SFP, 1.25G multi-mode dual fiber 850nm, 550m, LC, DDM, hot-pluggable	PC
	2632	SFP, 1.25G single-mode dual fiber 1310nm, 20km, LC, DDM, hot-pluggable	PC
	2612-T	SFP, 1.25G single-mode single fiber TX1310nm/RX1550nm, 20km, LC, DDM, hot-pluggable	PC
	2613-R	SFP, 1.25G single-mode single fiber TX1550nm/RX1310nm, 20km, LC, DDM, hot-pluggable	PC
	2612-T-SC	SFP, 1.25G single-mode single fiber TX1310nm/RX1550nm, 20km, SC, DDM, hot-pluggable	PC
	2613-R-SC	SFP, 1.25G single-mode single fiber TX1550nm/RX1310nm, 20km, SC, DDM, hot-pluggable	PC
10G Optical Module	6630	SFP+, 10G multi-mode dual fiber 850nm, 300m, LC, DDM, hot-pluggable	PC
	7832	SFP+, 10G single-mode dual fiber 1310nm, 20km, LC, DDM, hot-pluggable	PC
	7832-33	SFP+, 10G single-mode single fiber TX1330nm/RX1270nm, 20km, LC, DDM, hot-pluggable	PC
	7832-27	SFP+, 10G single-mode single fiber TX1270nm/RX1330nm, 20km, LC, DDM, hot-pluggable	PC
