Zero Configuration 11 Port Gigabit PoE Switch With 12Gbps Switching Capacity

PoE Ports : 8 (Port 1-2: 60W PoE++, Port 3-8: 30W PoE+)

Power Input : AC100-240V, 50-60Hz, 2.0A

Delivery Time : 2-8 work days

Jumbo Frame : 9.2K

Max Power Output : 120W total

Payment Terms : T/T,Western Union

Supply Ability : 300000 pcs/month

Packaging Details : Packaging dimensions: 250*205*45mm, weight: 0.95kg, Carton dimensions: 490*440*270mm, 20 pcs/carton, weight: 20kg

MAC Address Table : 2K

Operating Temperature : -20~55°C

Brand Name : ONV

Dimensions : 200*130*40mm

Switching Capacity : 12Gbps

Model Number : ONV-H3108PFD-2BT

Certification : CE, FCC, RoHS

Port Count : 11 (10 RJ45, 1 SFP)

Forwarding Rate : 16.37Mpps @64byte

Place of Origin : China

MOQ : 1

Contact Now

11-port Gigabit PoE Switch
Overview

The ONV-H3108PFD-2BT is a Gigabit PoE switch independently developed by ONV. It features 10×10/100/1000Base-T RJ45 ports and 1×1000Base-X uplink SFP fiber port. Ports 1-2 support PoE++ power supply with single-port PoE power up to 60W and backward compatibility. Ports 3-8 support PoE+ power supply with single-port PoE power up to 30W.

The PoE ports support a watchdog function that automatically restarts PoE power if a port experiences a communication failure, restoring network communication without affecting other ports. This reduces manual intervention and maintenance costs. The switch can power PoE terminal devices such as wireless APs, network cameras, VoIP phones, and video intercoms via Ethernet cables, meeting high-density/high-power PoE requirements.

Ideal for small and medium-sized enterprises, including hotels, campuses, industrial parks, government units, banks, hospitals, communities, and factories. Unmanaged mode enables plug-and-play operation with no configuration required.

Technical Specifications
Model ONV-H3108PFD-2BT
Interface Characteristics
Fixed Port 1×1000Base-X uplink SFP fiber port (Data)
2×10/100/1000Base-T uplink RJ45 ports (Data)
6×10/100/1000Base-T PoE ports (Data/Power)
2×10/100/1000Base-T bt PoE ports (Data/Power)
Ethernet Port Port 1-10 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤250 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port Gigabit optical fiber interface, default does not include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Optical Cable/Distance Multi-mode: 850nm/0-550m
Single-mode: 1310nm/0-40km, 1550nm/0-120km
Function Switch E file: Long-distance transmission and VLAN isolation function, Default-OFF, enable-ON. When opening, ports 1-8 support 10M/250-meter transmission and VLAN isolation.
Chip Parameter
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 12Gbps (non-blocking)
Forwarding Rate@64byte 16.37Mpps
MAC 2K
Buffer Memory 2M
Jumbo Frame 9.2K
LED Indicator Power: PWR (Green), PoE: PoE (Red), Function switch: Extend (Green), Network: Link (Green)
PoE & Power Supply
PoE Port Port 1-2 support PoE++ power, Port 3-8 support PoE+ power
Power Supply Pin Port 1-2 default 1/2,4/5(+), 3/6,7/8(-)
Port 3-8 default 1/2(+) 3/6(-)
Max Power Per Port 60W, PoE++
Total PWR/ Input Voltage 120W/ (AC100-240V)
Power Consumption Standby<6W, full load<120W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 2.0A
Physical Parameter
Operation Temp/ Humidity -20~55°C, 5%~90% RH non-condensing
Storage Temp/ Humidity -40~80°C, 5%~95% RH non-condensing
Dimension 200×130×40mm
Net /Gross Weight 0.65kg/0.95kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
Zero Configuration 11 Port Gigabit PoE Switch With 12Gbps Switching Capacity
Key Features
Gigabit Access with Uplink RJ45/SFP Fiber Port
  • Support non-blocking wire-speed forwarding for smoother transmission.
  • Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure.
  • Provide Gigabit RJ45 ports and uplink RJ45/SFP fiber port for flexible networking.
  • Meets the networking requirements of various scenarios
Smart PoE Power Supply
  • 8×10/100/1000Base-T RJ45 ports support PoE power supply
  • Compliant with PoE standards, backward compatible
  • Automatically identifies PoE devices and supplies power without damaging non-PoE devices.
  • Port 1-2: max PoE output power of 60W per port
  • Port 3-8: max PoE output power of 30W per port
Innovative Functions
  • PoE Watchdog: Enabled by default for ports 1-8, automatically detects data communication status in real-time. When port communication fails, the corresponding port PoE automatically restarts
  • Long Distance + VLAN Mode (E): When the switch is turned to ON (default OFF), ports 1-8 operate at 10M with maximum transmission distance of up to 250 meters, while enabling the physical VLAN isolation function
Stable and Reliable
  • CE, FCC, RoHS certified
  • Plug and play, no configuration required
  • User-friendly panel with LED indicators for PWR, Link, and PoE status
  • Low power consumption, galvanized steel housing with excellent heat dissipation

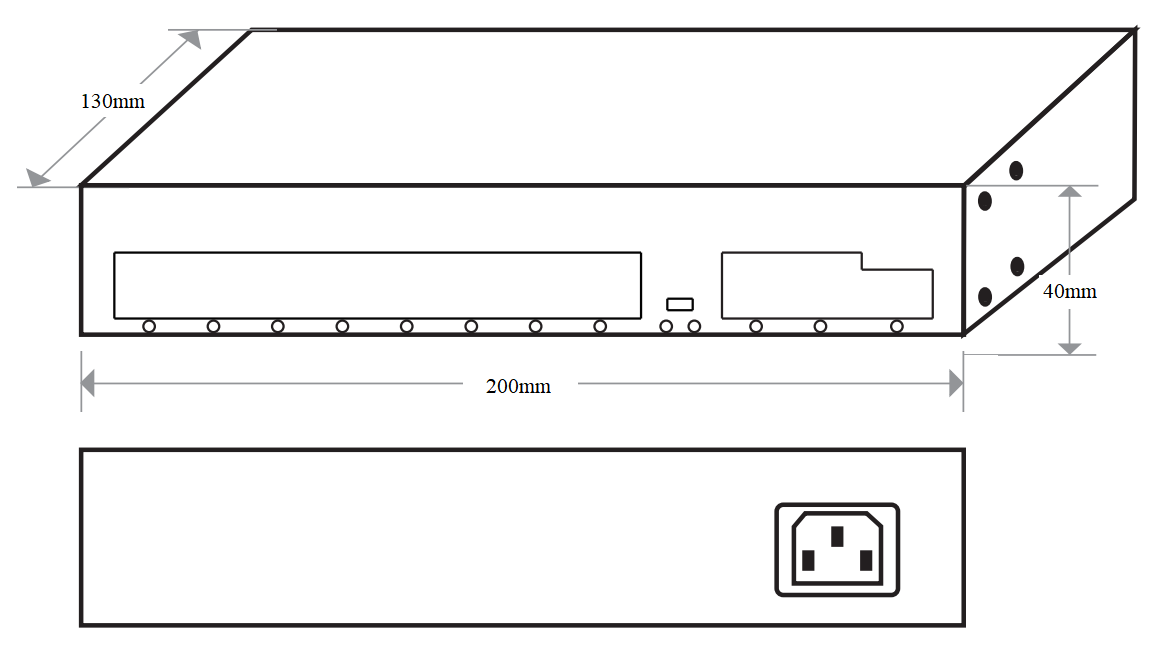

Dimensions
Zero Configuration 11 Port Gigabit PoE Switch With 12Gbps Switching Capacity

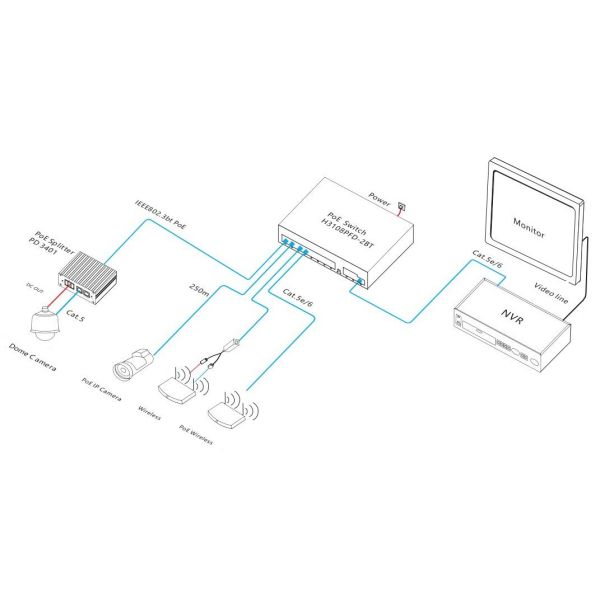

Application
Zero Configuration 11 Port Gigabit PoE Switch With 12Gbps Switching Capacity
Ordering Information
Model Description Built-in Power Supply
ONV-H3108PFD-2BT PoE switch with 10×10/100/1000M RJ45 ports and 1×1000Base-X uplink SFP fiber ports. Port 1-8 default support PoE watchdog (auto-restart PoE). Adjustment function switch, Port 1-8 supports 10M/250 meter transmission and VLAN isolation. Built-in power supply. 52V/120W

Note: The optical module and mounting ear are not included and need to be purchased separately.

Packing List
Packing List Qty Unit
11-port Gigabit PoE switch 1 Set
AC Power Line 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optical Module Options
Product Model Description Unit
1.25G Optical Module 2630 SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. Supports DDM function and hot plugging. PC
2632 SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2612-T SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2613-R SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
