30 Port 2.5G L3 Managed Ethernet Switch For High Density Networking

Supply Ability : 500000 pcs/month

Switching capacity : 240Gbps

Certification : CE, FCC, RoHS

Operation temperature : -20~+55°C

Weight : 3.4kg (net)

Model Number : ONV57030FM

Dimensions : 440*270*44mm

Input voltage : AC100-240V

MAC table : 32K

Delivery Time : 2-7 work days

Payment Terms : T/T,Western Union

Place of Origin : China

Packaging Details : Packaging dimensions: 525*390*95mm, weight: 4.2kg, Carton dimensions: 550*410*500mm, 5 pcs/carton, weight: 22.5kg

Jumbo frame : 12K

MOQ : 1

Forwarding rate : 178.56Mpps @64byte

Port count : 30 (24x RJ45, 2x 1/10G RJ45, 4x SFP+)

Power consumption : Standby<20W, full load<45W

Brand Name : ONV

Contact Now

30-port 2.5G Managed Ethernet Switch

Product Overview

The ONV57030FM is a 2.5G managed Ethernet switch independently developed by ONV. It features 24×10/100/1000/2500Base-T adaptive RJ45 ports, 2×1/10G RJ45 ports, and 4×1/10G SFP+ fiber ports, with each port supporting wire-speed forwarding.

This switch offers L3 network management functions, supports IPv4/IPv6 management, dynamic routing forwarding, comprehensive security protection mechanisms, advanced ACL/QoS strategies, and extensive VLAN functionality for easy management and maintenance. It supports multiple network redundancy protocols, including STP/RSTP/MSTP (<50ms) and ERPS (<20ms) to enhance link backup and network reliability, ensuring uninterrupted communication for critical applications during network failures.

Technical Specifications

Model	ONV57030FM
Interface Characteristics	Fixed Port: 1×Console RS232 port, 2×1/10G uplink RJ45 ports, 4×1/10G uplink SFP+ fiber ports, 24×10/100/1000/2500Base-T RJ45 ports Ethernet Port: Port 1-24 supports 10/100/1000/2500Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption Twisted Pair Transmission: 10BASE-T: Cat3,4,5 UTP (≤100m), 100BASE-TX: Cat5+ UTP (≤100m), 1000BASE-T: Cat5e/6+ UTP (≤100m), 2500BASE-T: Cat6a+ UTP (≤100m) Optical Fiber Port: 1/10G SFP+ fiber port (optical module optional) Optical Cable/Distance: Multi-mode: 850nm/0-550m, 0-300m (10G); Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameters	Network Management Type: L3 Switching Capacity: 240Gbps (non-blocking) Forwarding Rate: 178.56Mpps @64byte CPU: Dual Core 1G DRAM: 2G FLASH: 256M MAC: 32K Buffer Memory: 16M Jumbo Frame: 12K
Power Supply	Total Power/Input Voltage: 65W/(AC100-240V) Power Consumption: Standby <20W, full load <45W Power Supply: Built-in power supply, AC100-240V 50-60Hz, 1.0A
Physical Parameters	Operation Temp/Humidity: -20~+55°C, 5%~90% RH non-condensing Storage Temp/Humidity: -40~+75°C, 5%~95% RH non-condensing Dimension (L×W×H): 440×270×44mm Net/Gross Weight: 3.4kg/4.2kg Installation: Desktop, 1U/19" cabinet
Certification & Warranty	Lightning Protection: Protection level: IP30, Lightning protection: 6KV 8/20us Certification: CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS Warranty: 3 years, lifelong maintenance

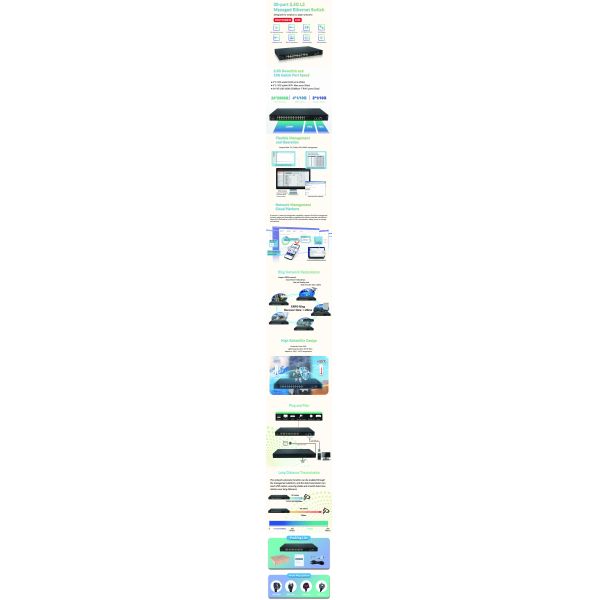

Product Image

30 Port 2.5G L3 Managed Ethernet Switch For High Density Networking

Key Features

2.5G Access with 1/10G Uplink Ports

Non-blocking wire-speed forwarding capability
Full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
Flexible combination of 2.5G RJ45 ports and 1/10G RJ45/SFP+ fiber ports for versatile networking solutions

Advanced Business Processing Capability

ERPS ring network and STP/RSTP/MSTP support for eliminating layer 2 loops and link backup
IEEE802.1Q VLAN with flexible VLAN division, Voice VLAN, and QinQ configuration
Static and dynamic aggregation for increased bandwidth, load balancing, and improved link reliability
QoS with port-based, 802.1P-based, and DSCP-based priority modes and four queue scheduling algorithms
ACL for data packet filtering with configurable matching rules and time permissions
IGMP V1/V2/V3 multicast protocol and IGMP Snooping for multi-terminal HD video surveillance and video conferencing

Enhanced Security

Port isolation and storm control
IP+MAC+port+VLAN quadruple flexible combination binding
802.1X authentication for LAN computer authorization control

Reliable Operation

CE, FCC, RoHS certifications
User-friendly panel with LED indicators for PWR and Link status
Low power consumption with fan, galvanized steel housing, and excellent heat dissipation

Easy Operation & Management

CPU monitoring, memory monitoring, and Ping detection
Secure management with HTTPS, SSLV3, SSHV1/V2 encryption
System logs and port traffic statistics for network optimization
LLDP for network management system link status queries
Multiple management methods: Web, CLI command line, SNMP, Telnet

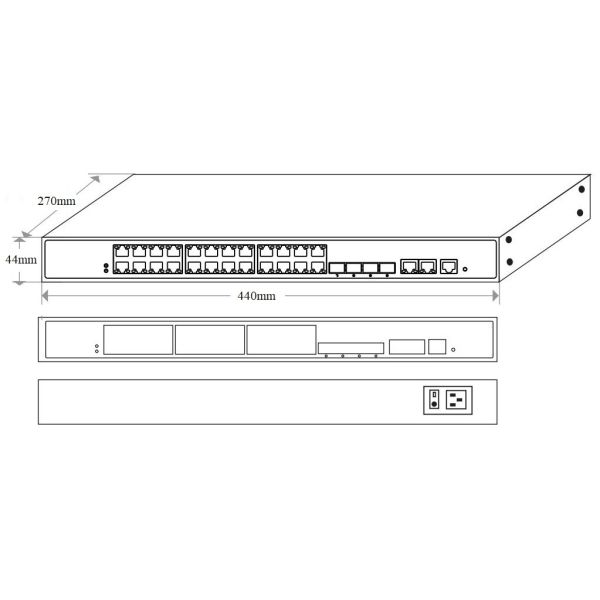

Dimension Diagram

Application Scenario

Ordering Information

Model	Description	Built-in Power Supply
ONV57030FM	L3 managed Ethernet switch with 24×10/100/1000/2500M RJ45 ports, 2×1/10G uplink RJ45 ports, and 4×1/10G uplink SFP+ fiber ports. Built-in power supply and 1U/19" cabinet installation.	65W

Note: The optical module is not included and needs to be purchased separately.

Packing List

Packing List	Qty	Unit
30-port 2.5G managed Ethernet switch	1	Set
RJ45-DB9 Adapter Cable	1	PC
AC Power Cable	1	PC
Mounting Kit	1	Set
User Guide	1	PC
Warranty Card and Certificate of Conformity	1	PC

Optical Module Options

Product	Model	Description	Unit
1.25G Optical Module	2630	SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface	PC
	2632	SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface	PC
	2612-T	SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface	PC
	2613-R	SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface	PC
	2612-T-SC	SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface	PC
	2613-R-SC	SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface	PC
Power Module	2633	1.25G SFP optical module transfers to 10/100/1000M RJ45 port	PC
10G Optical Module	6630	SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface	PC
	7832	SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface	PC
	7832-33	SFP+ optical module, 10G single-mode single fiber, TX1330nm/RX1270nm, transmission distance: 20km, LC interface	PC
	7832-27	SFP+ optical module, 10G single-mode single fiber TX1270nm/RX13300nm, transmission distance: 20km, LC interface	PC
