16 Port Gigabit Ethernet Switch With 4.1M Buffer Memory Plug And Play Operation

Port speed : 10/100/1000M

Power consumption : Standby<10W, full load<18W

Payment Terms : T/T,Western Union

Certification : CE, FCC, RoHS

Buffer memory : 4.1M

Place of Origin : China

Input voltage : AC100-240V

MAC table : 8K

Operating temperature : -20~+55°C

Model Number : ONV-H3016A

Supply Ability : 500000 pcs/month

MOQ : 1

Dimensions : 330*121.5*44mm

Switching capacity : 56Gbps

Forwarding rate : 23.81Mpps

Port count : 16

Delivery Time : 2-8 work days

Brand Name : ONV

Packaging Details : Packaging dimensions: 376*185*90mm, weight: 1.4kg, Carton dimensions: 480*395*395mm, 10 pcs/carton, weight: 15kg

Contact Now

16-port Gigabit Ethernet Switch
Overview

The ONV-H3016A is a Gigabit Ethernet switch independently developed by ONV. It features 16×10/100/1000M adaptive RJ45 ports with non-blocking full-duplex transmission for convenient network connection and expansion. Each port supports full-line speed forwarding, and the 4.1M large-capacity cache ensures timely transmission of large files and stable video streaming. Designed for 24/7 operation without disconnection, it effectively solves video freezes and picture loss in high-definition monitoring environments. Ideal for hotels, banks, campuses, factory dormitories, and small-to-medium enterprises. Plug-and-play operation requires no configuration, making it a simple and convenient choice for improved network performance.

Technical Specification
Model ONV-H3016A ONV-H3024A
Interface Characteristics
Fixed Port 16×10/100/1000Base-T RJ45 ports (Data) 24×10/100/1000Base-T RJ45 ports (Data)
Ethernet Port Port 1-16/1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 56Gbps (non-blocking)
Forwarding Rate@64byte 23.81Mpps 35.71Mpps
MAC 8K
Buffer Memory 4.1M
LED Indicator Power: PWR (Green), Network: Link/Act (Green)
Power Supply
Total PWR/Input Voltage 30W /(AC100-240V)
Power Consumption Standby<10W, full load<18W
Power Supply Built-in power supply, AC100~240V 50-60Hz, 0.56A
Physical Parameter
Operation Temp/Humidity -20~+55°C, 5%~90% RH non-condensing
Storage Temp/Humidity -40~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H) 330×121.5×44mm
Net/Gross Weight 1.0kg /1.4kg 1.1kg /1.5kg
Installation Desktop, Wall mount, 1U/19 inch
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance

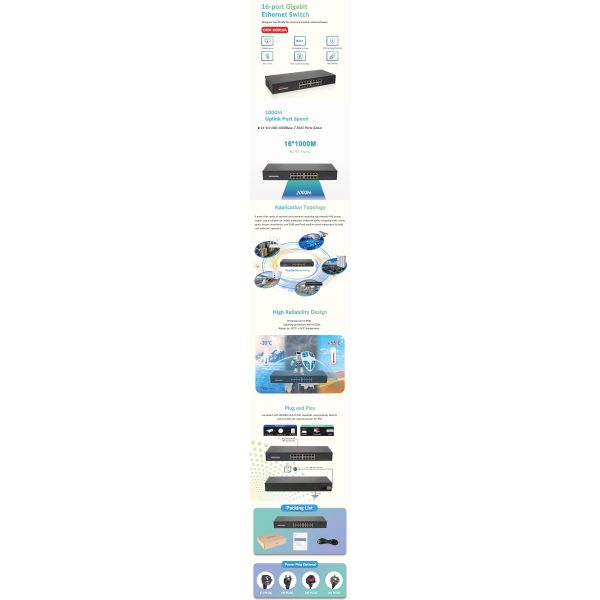

16 Port Gigabit Ethernet Switch With 4.1M Buffer Memory Plug And Play Operation
Features
  • Gigabit access, full-line speed forwarding
    • Support non-blocking wire-speed forwarding
    • Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
    • Support Gigabit adaptive RJ45 port to meet the networking needs of various scenarios
  • Stable and reliable
    • CE, FCC, RoHS certifications
    • Plug and play, no configuration, simple and convenient
    • Self-developed power supply, high redundancy, providing long-term stable power output
    • User-friendly panel shows device status through LED indicators for PWR and Link
    • Low power consumption, metal housing, and excellent heat dissipation ensure stable operation

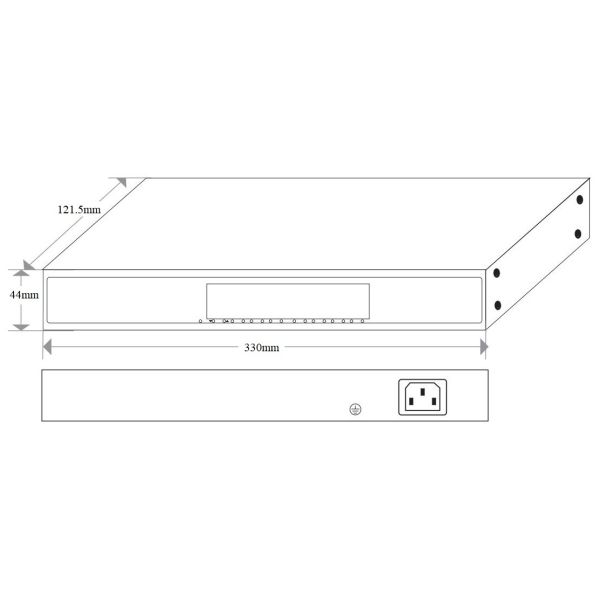

Dimensions
16 Port Gigabit Ethernet Switch With 4.1M Buffer Memory Plug And Play Operation

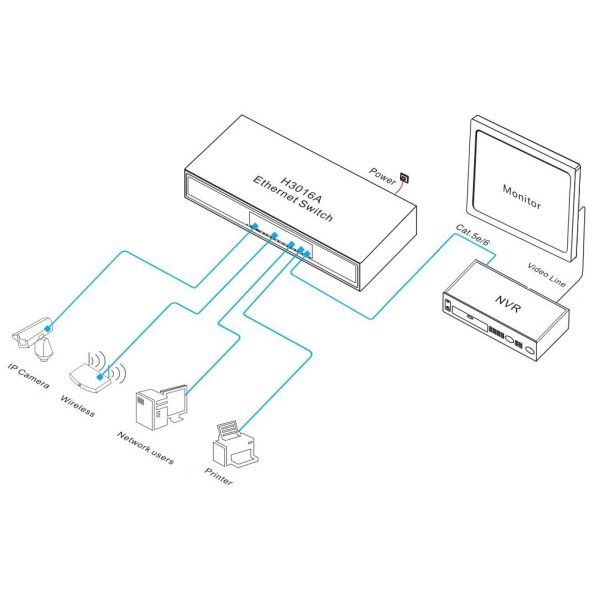

Application
16 Port Gigabit Ethernet Switch With 4.1M Buffer Memory Plug And Play Operation
Ordering Information
Model Description Built-in Power Supply
ONV-H3016A Ethernet switch with 16×10/100/1000M RJ45 ports. Built-in power supply and 1U/19" cabinet installation. 30W
ONV-H3024A Ethernet switch with 24×10/100/1000M RJ45 ports. Built-in power supply and 1U/19" cabinet installation.
Packing List
Item Quantity Unit
16-port Gigabit Ethernet switch 1 Set
AC Power Cable 1 PC
Hanging Ear 1 Pair
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
