5 Port 10/100M Unmanaged Ethernet Switch Low Power Consumption For Network Connectivity

Place of Origin : China

Port type : 10/100Base-TX RJ45

Jumbo frame : 1536byte

MOQ : 1

Certification : CE, FCC, RoHS

Delivery Time : 2-8 work days

Packaging Details : Packaging dimensions: 91*71*64mm, weight: 0.18kg, Carton dimensions: 390*308*350mm, 80 pcs/carton, weight: 15.4kg

Model Number : ONV-H1005ES

MAC table : 1K

Power consumption : Standby<1W, full load<2W

Buffer memory : 512K

Dimensions : 87.7*55*23.9mm

Payment Terms : T/T,Western Union

Supply Ability : 500000 pcs/month

Net weight : 0.08kg

Brand Name : ONV

Switching capacity : 1Gbps

Port count : 5

Forwarding rate : 0.74Mpps

Contact Now

5-port 10/100M Ethernet Switch

The ONV-H1005ES is a 10/100M Ethernet switch independently developed by ONV, featuring 5×10/100Base-TX adaptive RJ45 ports. Designed with a large backplane and cache switching chip, it enhances the forwarding rate of large files and effectively resolves video freeze and picture loss issues in high-definition surveillance environments. Ideal for hotels, banks, campuses, factory quarters, and small-to-medium enterprises seeking cost-effective networking solutions. Plug and play, no configuration required.

Technical Specifications
Model ONV-H1005ES ONV-H1008ES
Interface Characteristics
Fixed Port 5×10/100Base-TX RJ45 ports (Data) 8×10/100Base-TX RJ45 ports (Data)
Ethernet Port 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 1Gbps (Non-blocking) 1.6Gbps (Non-blocking)
Forwarding Rate @64byte 0.74Mpps 1.19Mpps
Buffer Memory 512K 768K
MAC 1K
Jumbo Frame 1536byte
LED Indicator Power: PWR (Green), Network: Link/Act (Green)
Power Supply
Total PWR/ Input Voltage 5W/ (DC5V)
Power Consumption Standby<1W, full load<2W Standby<1W, full load<3W
Power Supply External power adapter, AC100~240V 50-60Hz, 0.56A
Physical Parameter
Operation TEMP/ Humidity 0°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/ Humidity -40°C~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H) 87.7×55×23.9mm 132×55×23.9mm
Net /Gross Weight 0.08kg /0.18kg 0.1kg /0.2kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
Key Features
  • 10/100M line speed transmission

    ◇ Support non-blocking wire-speed forwarding.

    ◇ Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.

  • Stable and reliable

    ◇ CE, FCC, RoHS certified.

    ◇ Plug and play, no configuration required.

    ◇ Low power consumption, fanless design, flame retardant plastic casing.

    ◇ User-friendly panel with LED indicators for Link/Act and PWR status.

5 Port 10/100M Unmanaged Ethernet Switch Low Power Consumption For Network Connectivity

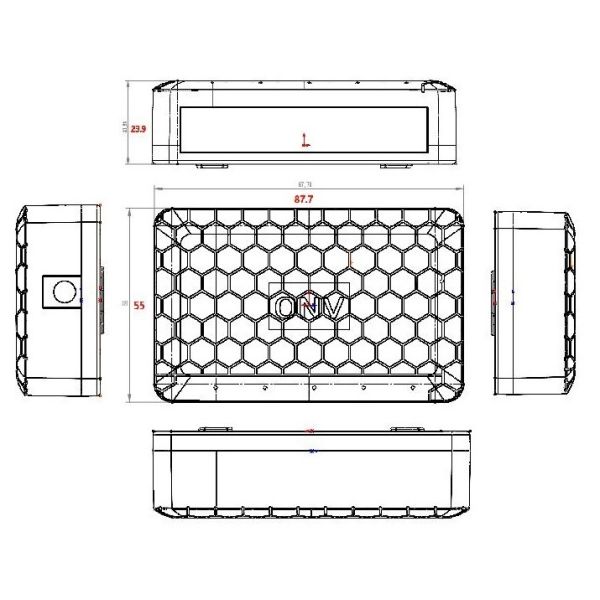

Dimensions
5 Port 10/100M Unmanaged Ethernet Switch Low Power Consumption For Network Connectivity

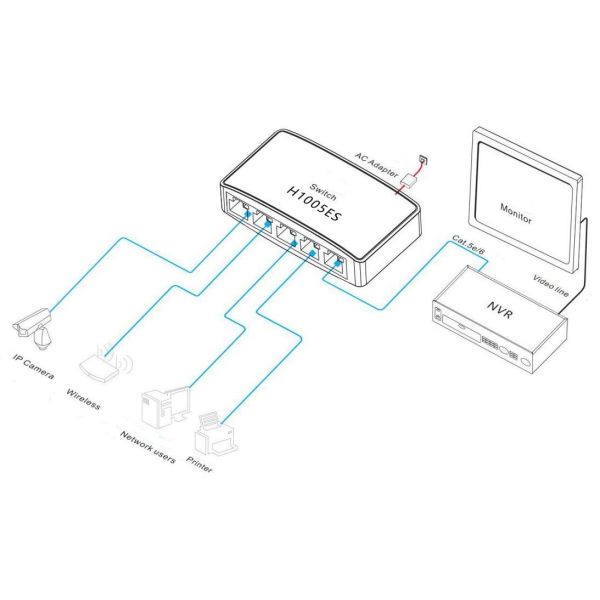

Application
5 Port 10/100M Unmanaged Ethernet Switch Low Power Consumption For Network Connectivity
Ordering Information
Model Description External Power Adapter
ONV-H1005ES Ethernet switch with 5×10/100M RJ45 ports. External power adapter. DC5V/1A
ONV-H1008ES Ethernet switch with 8×10/100M RJ45 ports. External power adapter.
Packing List
Packing List Qty Unit
5-port 10/100M Ethernet switch 1 Set
Power Adapter 5V/1A 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
