9 Port 2.5G Ethernet Switch With 60Gbps Switching Capacity For High Speed Networks

Supply Ability : 500000pcs/month

Transmission rate : 10/100/1000/2500Mbps

Delivery Time : 5-8 work days

Jumbo frame : 12K

Buffer memory : 8M

Power consumption : Standby<3W, full load<10W

Model Number : ONV57008FB

MOQ : 1

Switch capacity : 60Gbps

MAC address table : 4K

Dimensions : 190.5*105*29mm

Payment Terms : T/T,Western Union

Brand Name : ONV

Certification : CE, FCC, RoHS

Place of Origin : China

Operation temperature : -20°C~+55°C

Port count : 9

Forwarding rate : 44.64Mpps

Packaging Details : Packaging dimensions: 250*205*87mm, weight: 0.85kg, Carton dimensions: 470*425*525mm, 20 pcs/carton, weight: 17kg

Contact Now

9-port 2.5G Ethernet Switch

The ONV57008FB is a high-performance 2.5G Ethernet switch independently developed by ONV, designed for high-speed forwarding network environments including hotels, banks, campuses, factory dormitories, and small-to-medium enterprises.

Overview

This unmanaged switch features 8×10/100/1000/2500Base-T adaptive RJ45 ports and 1×1/2.5/10G SFP+ uplink fiber port. All ports support line-speed forwarding with an 8MB large-capacity buffer to ensure timely transmission of large files and stable video streaming. Plug-and-play operation requires no configuration, making it ideal for improving network performance.

Technical Specifications
Model ONV57008FB
Interface Characteristics
Fixed Port 1×1/2.5/10G uplink SFP+ fiber port (Data)
8×10/100/1000/2500Base-T RJ45 ports (Data)
Ethernet Port Ports 1-8 support 10/100/1000/2500Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100m)
100BASE-TX: Cat5 or later UTP (≤100m)
1000BASE-T: Cat5e or later UTP (≤100m)
2500BASE-T: Cat6a or later UTP (≤100m)
Optical Fiber Port No optical module included (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Optical Cable/Distance Multi-mode: 850nm/0-550m, 10G: 850nm/0-300m
Single-mode: 1310nm/0-40km, 1550nm/0-120km
Chip Parameters
Network Protocol IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3bz 2.5GBase-T, IEEE802.3ae 10GBase-SR/LR, IEEE802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 60Gbps (non-blocking)
Forwarding Rate@64byte 44.64Mpps
MAC 4K
Buffer Memory 8M
Jumbo Frame 12K
LED Indicator Power: PWR (Green), Network: Link (Yellow), Fiber port: L/A (Green)
Power Supply
Total PWR/Input Voltage 12W/DC12V
Power Consumption Standby <3W, full load <10W
Power Supply External power supply, AC100-240V 50-60Hz, 0.5A
Physical Parameters
Operation Temp/Humidity -20°C~+55°C, 5%~90% RH non-condensing
Storage Temp/Humidity -40°C~+80°C, 5%~95% RH non-condensing
Dimension (L×W×H) 190.5×105×29mm
Net/Gross Weight 0.45kg/1.05kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection Protection level: IP30, Lightning protection: 6KV 8/20us
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 3 years, lifelong maintenance
Key Features
2.5G Access with 1/2.5/10G SFP+ Uplink
  • Non-blocking wire-speed forwarding capability
  • Full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
  • Flexible 2.5G RJ45 port and 1/2.5/10G uplink SFP+ fiber port combination for versatile networking scenarios
Reliability and Durability
  • CE, FCC, and RoHS certified
  • User-friendly LED indicators for PWR, Link, and L/A status monitoring
  • Low power consumption with galvanized steel housing and excellent heat dissipation
Dimensions
9 Port 2.5G Ethernet Switch With 60Gbps Switching Capacity For High Speed Networks

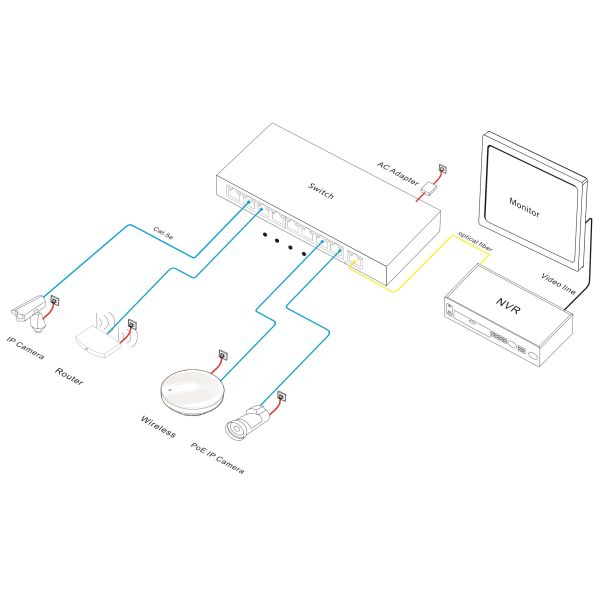

Application
9 Port 2.5G Ethernet Switch With 60Gbps Switching Capacity For High Speed Networks
Ordering Information
Model Description External Power Supply
ONV57008FB Ethernet switch with 8×10/100/1000/2500M RJ45 ports and 1×1/2.5/10G uplink SFP+ fiber port 12W

Note: The optical module is not included and needs to be purchased separately.

Packing List
Packing List Qty Unit
9-port 2.5G Ethernet switch 1 Set
AC power cord+power adapter 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
Optical Module Options
Product Model Description Unit
1.25G Optical Module 2630 SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface. Supports DDM function and hot plugging. PC
2632 SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2612-T SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2613-R SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
2612-T-SC SFP optical module, 1.25G single-mode single fiber TX1310nm/RX1550nm, transmission distance: 20km, SC interface. Supports DDM function and hot plugging. PC
2613-R-SC SFP optical module, 1.25G single-mode single fiber TX1550nm/RX1310nm, transmission distance: 20km, SC interface. Supports DDM function and hot plugging. PC
10G Optical Module 6630 SFP+ optical module, 10G multi-mode dual fiber 850nm, transmission distance: 300m, LC interface. Supports DDM function and hot plugging. PC
7832 SFP+ optical module, 10G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
7832-33 SFP+ optical module, 10G single-mode single fiber TX1330nm/RX1270nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
7832-27 SFP+ optical module, 10G single-mode single fiber TX1270nm/RX1330nm, transmission distance: 20km, LC interface. Supports DDM function and hot plugging. PC
