10 Port Gigabit Ethernet Switch Wide Temperature with Plug And Play Functionality

MOQ : 1

RJ45 ports : 2*10/100/1000M

Delivery Time : 2-8 work days

Brand Name : ONV

Input voltage : DC12V

Place of Origin : China

Power consumption : <10W

Supply Ability : 500000 pcs/month

Packaging Details : Packaging dimensions: 250*205*87mm, weight: 0.95kg, Carton dimensions: 470*425*525mm, 20 pcs/carton, weight: 20.5kg

Payment Terms : T/T,Western Union

Buffer memory : 2M

Certification : CE, FCC, RoHS

Forwarding rate : 14.88Mpps

Dimensions : 221*112*29mm

Net weight : 0.65kg

SFP ports : 8*1000M

Port count : 10

Model Number : ONV-H3008FO

Switching capacity : 20Gbps

Contact Now

Product Overview

The ONV-H3008FO is a Gigabit Ethernet fiber switch independently developed by ONV. It features 2×10/100/1000M RJ45 ports and 8×1000M SFP fiber ports, with each port supporting wire-speed forwarding. The switch enables convenient network connection and expansion regardless of transmission medium.

With a 2M large-capacity packet forwarding buffer, it ensures timely transmission of large files and stable video streaming. The switch operates stably 24/7 without dropping connections, effectively solving problems such as video stuttering and picture loss in high-definition monitoring environments.

Ideal for network environments requiring high-speed forwarding in hotels, banks, campuses, scenic spots, supermarkets, factory dormitories, and small-to-medium enterprises. This unmanaged model offers plug-and-play functionality with no configuration required.

Technical Specifications

Model	ONV-H3008FO

Interface Characteristics

Fixed Port	8×1000Base-X SFP fiber ports (Data) 2×10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port	Port 9-10 can support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission	10BASE-T: Cat3,4,5 UTP (≤100 meters) 100BASE-TX: Cat5 or later UTP (≤100 meters) 1000BASE-T: Cat5e or later UTP (≤100 meters)
Optical Fiber Port	Gigabit optical fiber port, default no include optical module (optional single-mode/multi-mode, single fiber/dual fiber optical module, LC)
Optical Cable/Distance	Multi-mode: 850nm/ 0-550m Single-mode: 1310nm/ 0-40km, 1550nm/ 0-120km

Chip Parameter

Network Protocol	IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode	Store and forward (Full wire speed)
Switching Capacity	20Gbps (non-blocking)
Forwarding Rate@64byte	14.88Mpps
MAC	4K
Buffer Memory	2M
Jumbo Frame	10K
LED Indicator	Power: PWR (Green), Data: Link (Yellow), Rate: 100/1000M (Green)

Power Supply

Total PWR/ Input Voltage	10W/ DC12V
Power Consumption	Standby<6W, full load<10W
Power Supply	External power adapter, AC100-240V 50-60Hz, 0.35A

Physical Parameter

Operation Temp/ Humidity	-20~+55°C, 5%~90% RH non-condensing
Storage Temp/ Humidity	-40~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H)	221×112×29mm
Net /Gross Weight	0.65kg/ 0.95kg
Installation	Desktop, Wall mount

Certification & Warranty

Lightning Protection	Lightning protection: 4KV 8/20us, Protection level: IP30
Certification	CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty	1 year, lifelong maintenance

Key Features

Gigabit multi-fiber port access, uplink RJ45 port
Support non-blocking wire-speed forwarding. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Support Gigabit RJ45 port and SFP fiber port combination, enabling flexible networking to meet various scenario needs.
Stable and reliable
CE, FCC, RoHS certified. Plug and play functionality with no setup required. User-friendly panel with LED indicators for PWR and Link status. Self-developed power supply with high redundancy design for long-term stable power output. Low power consumption, galvanized steel metal housing, and excellent heat dissipation ensure stable operation.

Dimensions

10 Port Gigabit Ethernet Switch Wide Temperature with Plug And Play Functionality

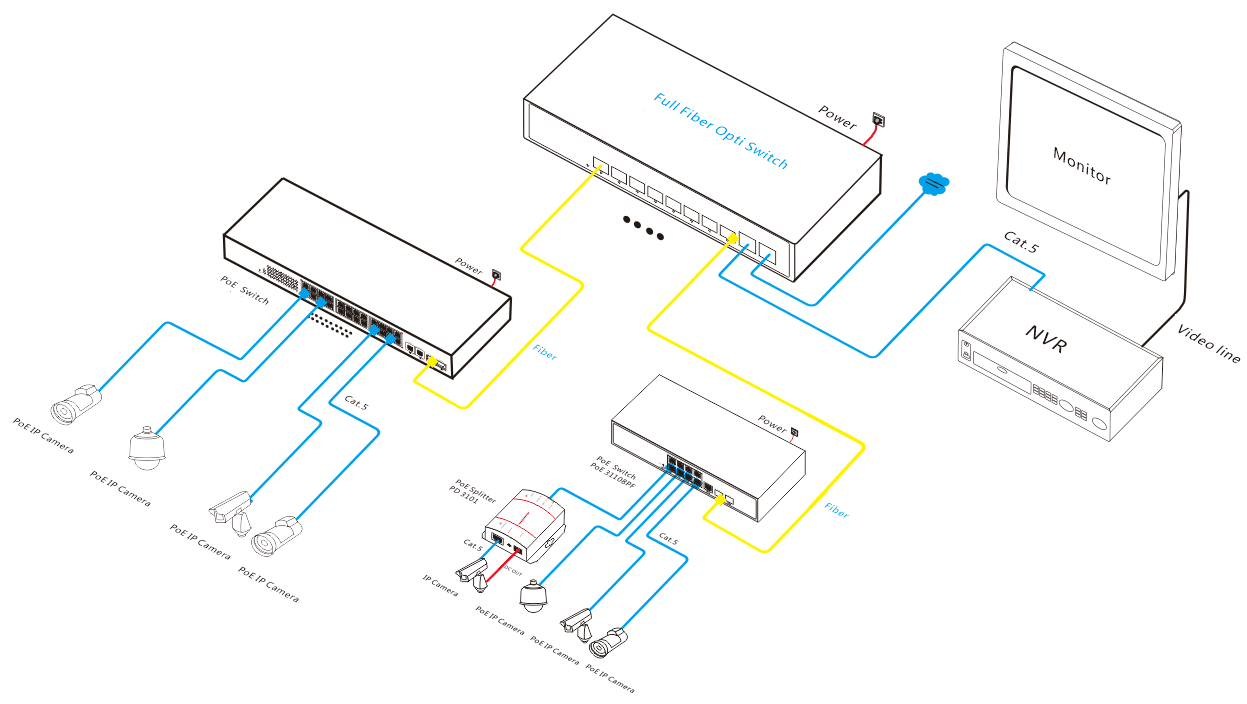

Application

Ordering Information

Model	Description	External Power Adapter
ONV-H3008FO	Ethernet switch with 2×10/100/1000M RJ45 ports and 8×1000M uplink SFP fiber ports. External power adapter.	12W

Note: The optical module is not included and needs to be purchased separately.

Packing List

Packing List	Qty	Unit
10-port Gigabit Ethernet switch	1	Set
DC12V Power Adapter	1	PC
Mounting Kit (Hanging Ear)	1	Pair
User Guide	1	PC
Warranty Card and Certificate of Conformity	1	PC

Optical Module Options

Product	Model	Description	Unit
1.25G Optical Module	2630	SFP optical module, 1.25G multi-mode dual fiber 850nm, transmission distance: 550m, LC interface, supports DDM function and hot plugging.	PC
	2632	SFP optical module, 1.25G single-mode dual fiber 1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging.	PC
	2612-T	SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging.	PC
	2613-R	SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, LC interface, supports DDM function and hot plugging.	PC
	2612-T-SC	SFP optical module, 1.25G single-mode single fiber TX1310nm/ RX1550nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging.	PC
	2613-R-SC	SFP optical module, 1.25G single-mode single fiber TX1550nm/ RX1310nm, transmission distance: 20km, SC interface, supports DDM function and hot plugging.	PC
Power Module	2633	1.25G SFP optical module transfers to 10/100/1000M RJ45 port.	PC
