5-port 10/100M Ethernet switch with 1Gbps switching capacity for reliable network performance

Packaging Details : Packaging dimensions: 141*80*84mm, weight: 0.2kg, Carton dimensions: 595*445*390mm, 80 pcs/carton, weight: 17.5kg

Buffer memory : 512K

Input voltage : DC5V

Brand Name : ONV

Delivery Time : 2-8 work days

Model Number : ONV-H1005S

Jumbo frame : 1536byte

Payment Terms : T/T,Western Union

Switching capacity : 1Gbps

Port count : 5

Port type : 10/100Base-TX RJ45

Place of Origin : China

MAC table : 1K

Power consumption : Standby<1W, full load<2W

MOQ : 1

Dimensions : 99.5*69.5*28.2mm

Certification : CE, FCC, RoHS

Supply Ability : 500000 pcs/month

Forwarding rate : 0.74Mpps

Contact Now

5-port 10/100M Ethernet Switch
Overview

The ONV-H1005S is a 10/100M Ethernet switch independently developed by ONV. It features 5×10/100Base-TX adaptive RJ45 ports. The design utilizes a large backplane and large cache switching chip to improve the forwarding rate of large files and effectively solve problems of video freeze and picture loss in high-definition surveillance environments. Suitable for hotels, banks, campuses, factory quarters, and small-to-medium enterprises seeking cost-effective networking solutions. Unmanaged mode enables plug-and-play operation with no configuration required.

Technical Specification
Parameter ONV-H1005ES ONV-H1008ES
Interface Characteristics
Fixed Port 5×10/100Base-TX RJ45 ports (Data) 8×10/100Base-TX RJ45 ports (Data)
Ethernet Port 10/100Base-TX auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
Chip Parameter
Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode Store and forward (Full wire speed)
Switching Capacity 1Gbps (Non-blocking) 1.6Gbps (Non-blocking)
Forwarding Rate@64byte 0.74Mpps 1.19Mpps
Buffer Memory 512K 768K
MAC 1K
Jumbo Frame 1536byte
LED Indicator Power: PWR (Green), Network: Link/Act (Green)
Power Supply
Total PWR/Input Voltage 5W/(DC5V)
Power Consumption Standby<1W, full load<2W Standby<1W, full load<3W
Power Supply External power adapter, AC100~240V 50-60Hz, 0.56A
Physical Parameter
Operation TEMP/Humidity 0°C~+55°C, 5%~90% RH non-condensing
Storage TEMP/Humidity -40°C~+75°C, 5%~95% RH non-condensing
Dimension (L×W×H)

99.5×69.5×28.2mm

140*78*34mm
Net/Gross Weight 0.1kg/0.2kg 0.2kg/0.26kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
5-port 10/100M Ethernet switch with 1Gbps switching capacity for reliable network performance
Features
  • 10/100M line speed transmission
    • Support non-blocking wire-speed forwarding
    • Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure
  • Stable and reliable
    • CE, FCC, RoHS certified
    • Plug and play, no configuration required
    • Low power consumption, fanless design, flame retardant plastic casing
    • User-friendly panel with LED indicators for Link/Act and PWR status
Dimensions
5-port 10/100M Ethernet switch with 1Gbps switching capacity for reliable network performance

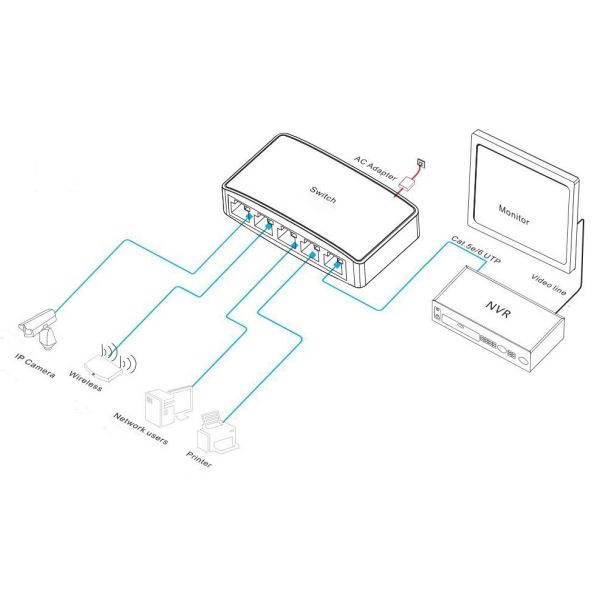

Application
5-port 10/100M Ethernet switch with 1Gbps switching capacity for reliable network performance
Ordering Information
Model Description External Power Adapter
ONV-H1005S Ethernet switch with 5×10/100M RJ45 ports. External power adapter. 5W
ONV-H1008S Ethernet switch with 8×10/100M RJ45 ports. External power adapter.
Packing List
Packing List Qty Unit
5-port 10/100M Ethernet switch 1 Set
Power Adapter 5V/1A 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
