5 Port Gigabit Unmanaged Ethernet Switch Zero Configuration Shock Resistant

Packaging Details : Packaging dimensions: 104*76*68mm, weight: 0.35kg, Carton dimensions: 490*440*270mm, 75 pcs/carton, weight: 27.3kg

MAC Table : 2K

Operation Temperature : 0~+55°C

MOQ : 1

Dimensions : 90*70*27mm

Port Type : 10/100/1000Base-T RJ45

Supply Ability : 500000 pcs/month

Power Consumption : Standby<1W, full load<5W

Model Number : ONV-H3005

Place of Origin : 500000 pcs/month

Buffer Memory : 2M

Input Voltage : DC5V

Payment Terms : Western Union,T/T

Delivery Time : 2-8 work days

Forwarding Rate : 7.44Mpps

Brand Name : ONV

Switching Capacity : 10Gbps

Certification : CE, FCC, RoHS

Port Count : 5

Contact Now

5-port Gigabit Ethernet Switch
Overview

The ONV-H3005 is a Gigabit Ethernet switch independently developed by ONV. It features 5*10/100/1000Base-T adaptive RJ45 ports. The design utilizes a large backplane and cache switching chip to improve large file forwarding rates and effectively resolve video freeze and picture loss issues in high-definition surveillance environments. Suitable for hotels, banks, campuses, factory quarters, and small-to-medium enterprises seeking cost-effective networking solutions. Unmanaged mode enables plug-and-play operation with no configuration required.

Technical Specification
Model ONV-H3005 ONV-H3008
Interface Characteristics
Fixed Port 5*10/100/1000Base-T RJ45 ports (Data) 8*10/100/1000Base-T RJ45 ports (Data)
Ethernet Port 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission 10BASE-T: Cat3,4,5 UTP (≤100 meters)
100BASE-TX: Cat5 or later UTP (≤100 meters)
1000BASE-T: Cat5e or later UTP (≤100 meters)
Chip Parameter
Network Protocol IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode Store and forward (Full line speed)
Switching Capacity 10Gbps (non-blocking) 16Gbps (non-blocking)
Forwarding Rate @64byte 7.44Mpps 11.9Mpps
MAC 2K
Buffer Memory 2M
LED Indicator Power: PWR (Green), Network: Link/Act (Green)
Power Supply
Total PWR/ Input Voltage 5W/ DC5V 9W/ DC5V
Power Consumption Standby<1W, full load<5W Standby<2W, full load<9W
Power Supply External power adapter, AC100~240V 50-60Hz, 0.56A
Physical Parameter
Operation Temp/ Humidity 0~+55°C, 5%~90% RH non-condensing
Storage Temp/ Humidity -40~+75°C, 5%~95% RH non-condensing
Dimension (L*W*H) 90*70*27mm 142*77.5*26mm
Net /Gross Weight 0.25kg /0.35kg 0.3kg /0.4kg
Installation Desktop, Wall mount
Certification & Warranty
Lightning Protection Lightning protection: 4KV 8/20us, Protection level: IP30
Certification CE mark, commercial, CE/LVD EN62368-1, FCC Part 15, RoHS
Warranty 1 year, lifelong maintenance
5 Port Gigabit Unmanaged Ethernet Switch Zero Configuration Shock Resistant
Features
  • Gigabit rate, high-speed transmission
    • Support non-blocking wire-speed forwarding.
    • Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure.
    • Support Gigabit RJ45 port, high speed, fast transmission, convenient for users to flexibly network, and meets various high-definition network requirements.
  • Stable and reliable
    • CE, FCC, RoHS certified
    • Plug and play, no configuration, simple and convenient
    • User-friendly panel shows device status through LED indicators for PWR and Link.
    • Self-developed power supply with high redundancy design provides long-term stable power output.
    • Low power consumption, fanless design, and metal housing with excellent heat dissipation ensure stable operation.
Dimensions
5 Port Gigabit Unmanaged Ethernet Switch Zero Configuration Shock Resistant

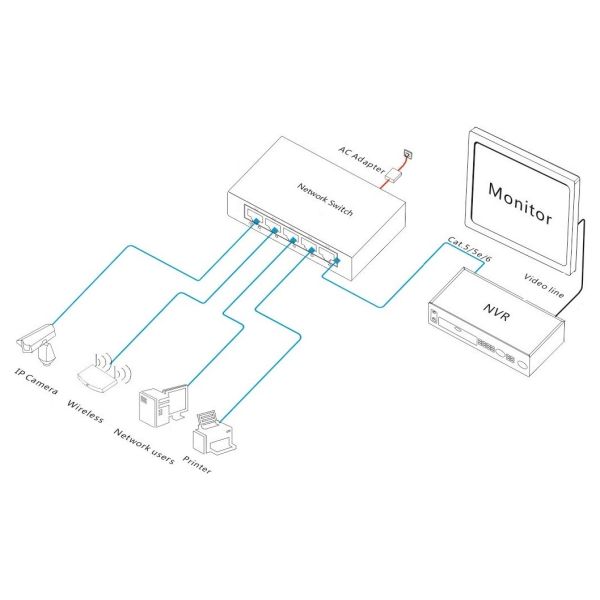

Application
5 Port Gigabit Unmanaged Ethernet Switch Zero Configuration Shock Resistant
Ordering Information
Model Description External Power Adapter
ONV-H3005 Ethernet switch with 5*10/100/1000M RJ45 ports. External power adapter. 5W
ONV-H3008 Ethernet switch with 8*10/100/1000M RJ45 ports. External power adapter. 9W
Packing List
Packing List Qty Unit
5-port gigabit Ethernet switch 1 Set
Power Adapter 1 PC
User Guide 1 PC
Warranty Card and Certificate of Conformity 1 PC
